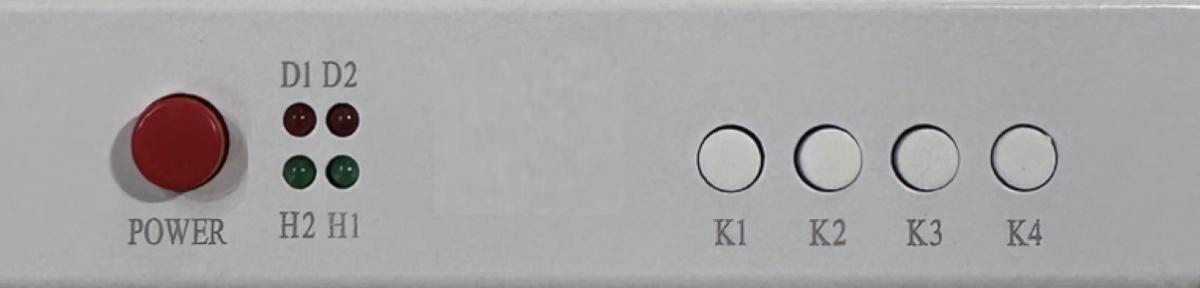

Liamm Posted May 23, 2025 Posted May 23, 2025 (edited) Fuser Installation — Setup Guide Indicator lights, button functions, resolution controls, and port configuration overview. Indicator Lights Guide Indicator Description [D1] Power Indicator Solid light when the device is powered on. [D2] Fusion Function Indicator Solid light when fusion is active; off when fusion is disabled. [H2] DP Secondary Input Signal Indicator Solid light indicates normal operation. [H1] DP Primary Input Signal Indicator Solid light indicates normal operation. Join Discord Support Port Guide Button Functions Power: Power switch to turn the device on or off. [K1] Resolution Control Short Press: Rotate to switch between resolutions: 1920x1080 (Factory Default) 2560x1440 3840x2160 2560x1080 3440x1440 Long Press (Hold 3 seconds): Displays current resolution and refresh rate. Top Display: Main unit information Bottom Display: Secondary unit information Keying & Fusion Controls [K2] Keying Intensity Adjustment: Rotate to adjust upper keying (0–20). Factory default is 0 (keying still applies). [K3] Keying Reset: Restore keying intensity to factory default (0). [K4] Fusion Control: Short press toggles fusion. Long press switches HDMI 1/2 or combined output. Port Guide DP: Primary display output HDMI1: GPU of main PC HDMI2: GPU of secondary PC Type-C: Updates and EDID injection DC 12V: Power input Let me know if this works for you! Edited January 30 by Jost211
